The Ultimate Charge / Discharge Battery Testing System for Superior Battery Performance

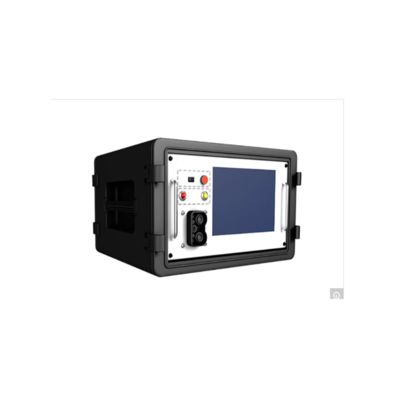

Saiter ST-9980EA-HPC European Standard DC Charging Pile Tester is a dedicated testing device designed for European-standard electric vehicle DC charging piles. It is primarily used for on-site testing and functional acceptance verification of off-board conductive chargers for electric vehicles. Suitable for R&D by DC charging pile manufacturers, on-site acceptance and inspection by third-party testing institutions, as well as field acceptance testing by purchasers and inspection units of DC charging piles, its practical functions eliminate the inconveniences and limitations associated with using actual electric vehicles for testing. It also prevents potential damage to test vehicles caused by charging pile failures.

Product Features

• Portable trolley case design: compact, lightweight, and easy to carry outdoors, with a high level of electrical protection.

• Equipped with one CCS2 DC electric vehicle charging socket (DC 1000V/500A).

• Strict compliance with ISO 15118 and DIN SPEC 70121 charging communication protocol standards, meeting standard charging sequence test requirements.

• Features a 10.1-inch touchscreen interface for real-time monitoring and display of charging voltage, current, CP status, and other key parameters.

• Includes upper-computer software for setting charging parameters and displaying charging status. The software supports real-time output of charging message data.

• Optional multi-channel high-precision high-speed waveform acquisition module for capturing charging voltage, current, and pilot signals to meet interoperability testing requirements. Simulates vehicle control pilot circuit to authentically replicate the charging process. Dedicated calibration terminals on the panel allow for various verification methods.

• Supports display and configuration of EVCC and EVSE parameters, real-time display of charging voltage, current, power, status, as well as charging sequence and waveform diagrams (optional).

• Built-in WiFi functionality (optional) enables remote wireless testing via upper-computer connection.

• Integrated HomePlug GreenPHY data monitoring module (optional) supports capture/saving of data packets and allows in-depth analysis of underlying charging communication data.
