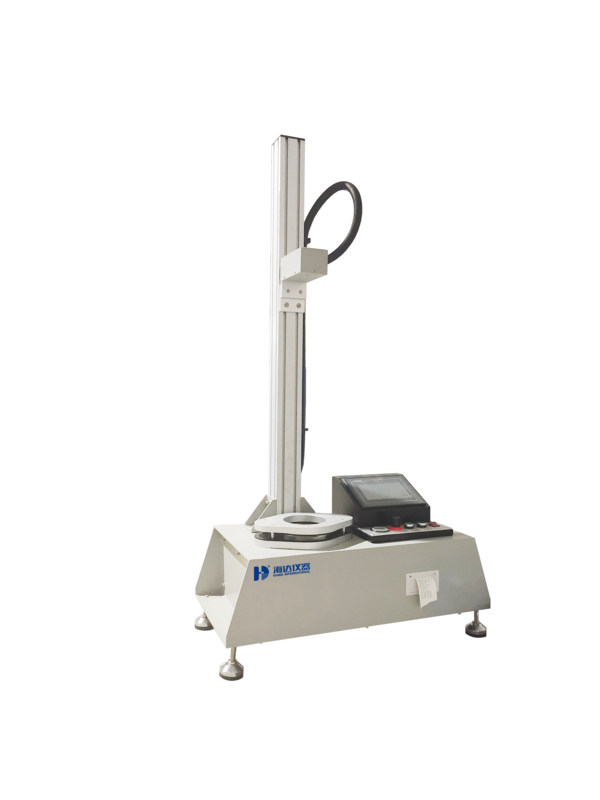

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
SOFTWARE DETAILS
APPLICATIONS
Fall Dart Impact Testing Machine is used to test the impact resistance of various plastic films and slices, which meets the standards of ASTM D1709.
GENERAL SPECIFICATIONS
Estimated Packaging Dimensions: (L×W×H) 1020*600*2250mm
Estimated Gross Weight: 130kg
Power supply source: Single-phase, 220V±10%, 50/60Hz (can be appointed)
STANDARD FEATURES
| Test Item |
Specification |
| Testing sample mass |
Method A: 50-2000g; Method B: 300-2000g |
| Testing accuracy |
0.1g (0.1J) |
| Testing method |
Method A & Method B (Option) |
| Specimen size |
＞150mm×150mm |
| Diameter of impacting head |
Method A:Ф38.1±0.1mm, Method B:Ф50.8±0.1mm |
| Diameter of dart shaft |
Ф6.5±0.1mm |
| Inner diameter of specimen fixture |
125±2 mm |
| Impacting height |
Method A : 0-660mm, Method B: 0-1520mm |
| Weights |
Method A: 5g*2, 15g*8, 30g*8, 60g*8, 500g*2
Method B: 15g*2, 45g*8, 90g*8, 300g*2 |
| Power |
Single-phase 220V, 60Hz |
| Estimated Weight |
100kg |
| Specimen Fixture |
Pneumatic |
