5020-HD Diaper Waist Measurer for Paper Packaging Testing

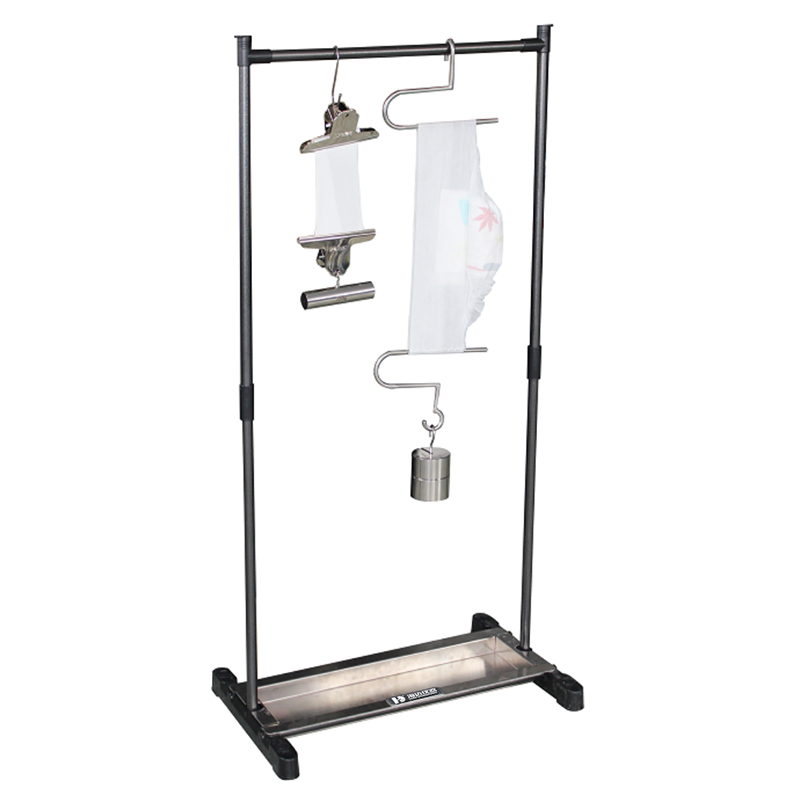

Grande immagine : 5020-HD Diaper Waist Measurer for Paper Packaging Testing

Dettagli:

Place of Origin:	China
Marca:	Haida
Certificazione:	CE、ISO
Model Number:	5020-HD

Termini di pagamento e spedizione:

Minimum Order Quantity:	1 set
Prezzo:	Negoziabile
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contatto

5020-HD Diaper Waist Measurer for Paper Packaging Testing

descrizione

Force Resolution:	1/500000 of the maximum test force fs	Vibration Mode:	reciprocating
Load Cell:	1 Load Cell For Highest Accuracy	Controller:	PLC controller and touch screen panel
Standard:	ISO 287, TAPPI T810, GB/T 2679.6	Control System:	PLC Programmed Control
Data Display:	Load, displacement, speed	Time Display:	To display time during test ( s )
Transmit Approach:	Electric Transmission	Type:	HD-A544
Drop Error:	± 10	Design Criteria:	ISO 2248, JIS Z0202-87, GB/T4857.5-92
Impact Times:	0~9,999 times	Voltage:	110/220V AC, 250W
Test Speed:	10 ±3mm/min (0.01~200mm/min Adjustable)	Max Drop Weight:	150 Kg
Display:	five LED digital display;	Cutting Diameter:	90.6±0.5mm
Precision:	< 0.5%	Counter:	LCD,0~999,999
Producer:	guangdong China(mainland)	Operating Method:	Microcomputer Control
Adjustable Interval:	25, 30, 50, 60, 80100150mm	Test Cycles Setting:	4 digits pre-set counter
Evidenziare:	5020-HD Diaper Waist Measurer , Diaper Waist Measurer , Accurate Time Display Diaper Waist Measurer

5020-HD Diaper Waist Measurer

Product Specifications

Attribute	Value
Force Resolution	1/500000 of the maximum test force fs
Vibration Mode	Reciprocating
Load Cell	1 Load Cell For Highest Accuracy
Controller	PLC controller and touch screen panel
Standard	ISO 287, TAPPI T810, GB/T 2679.6
Control System	PLC Programmed Control
Data Display	Load, displacement, speed
Time Display	To display time during test (s)
Transmit Approach	Electric Transmission
Type	HD-A544
Drop Error	± 10
Design Criteria	ISO 2248, JIS Z0202-87, GB/T4857.5-92
Impact Times	0~9,999 times
Voltage	110/220V AC, 250W
Test Speed	10 ±3mm/min (0.01~200mm/min Adjustable)
Max Drop Weight	150 Kg
Display	Five LED digital display
Cutting Diameter	90.6±0.5mm
Precision	< 0.5%
Counter	LCD,0~999,999
Producer	Guangdong, China (mainland)
Operating Method	Microcomputer Control
Adjustable Interval	25, 30, 50, 60, 80, 100, 150mm
Test Cycles Setting	4 digits pre-set counter

Product Description

The 5020-HD Diaper Waist Measurer is a precision instrument designed for measuring the waist circumference of diapers according to industry standards.

Application

Specifically designed for measuring waist circumference of both sticker-type and pants-type diapers with high accuracy.

Compliance Standards

GB/T 33280-2016 - Diapers Specifications and Dimensions
GB/T39391-2020 - Sanitary absorbent pants for women

Standard Features

All stainless steel frame	1 set
Waist sticker type diaper sample holder	1 pair
Weight of waist-mounted diaper	750g each (total mass with the lower sample clip)
Pants-type diaper sample hook	1 pair
Two weights for pants-type diapers	2500g (1000g+1500g) (Total mass with the lower sample hook)
Dimensions	600mm x 500mm x 1400mm
Weight	10kg
