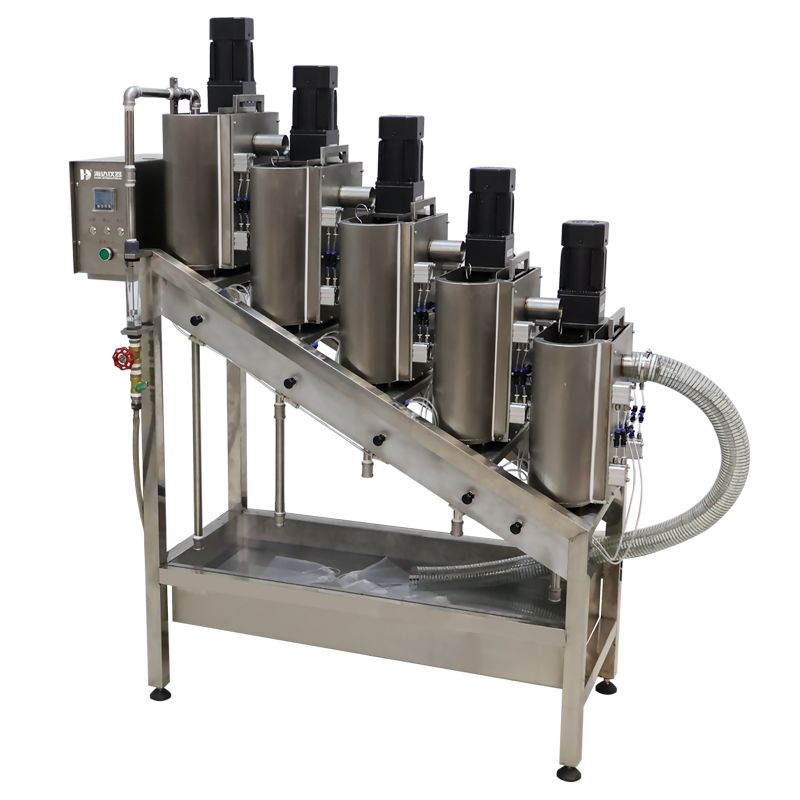

Precision HD-P010 McNett Fiber Classifier for Paper Pulp Testing

Grande immagine : Precision HD-P010 McNett Fiber Classifier for Paper Pulp Testing

Dettagli:

Place of Origin:	China
Marca:	Haida
Certificazione:	CE、ISO
Model Number:	HD-P010

Termini di pagamento e spedizione:

Minimum Order Quantity:	1 set
Prezzo:	Negoziabile
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contatto

Precision HD-P010 McNett Fiber Classifier for Paper Pulp Testing

descrizione

Function:	compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument	Name:	paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display:	LCD,Digital display	Feature:	easy to operate
Operation Method:	Automatic	Product Type:	Testing Instruments
Protection Device:	Induction type protection device	Control:	PLC control
Sensing Method:	Pressure Transmitter	Stop:	Stop test
Force Resolution:	1/500000 of the maximum test force fs	Vibration Mode:	reciprocating
Test Cycles Setting:	4 digits pre-set counter	Load Measuring Range:	full range of 0.2% ~ 100% FS
Accuracy:	±0.5%	Horsepower:	1/2 HP
Drop Error:	± 10	Power Capacity:	5.3 HP
Plywood Size:	H48in * D48in	Tear Length:	43mm
Force Reading:	Kgf, Ibf, N, KN, T Etc	Resolution Of Value:	0.01N
Pressure Range:	600~1200kpa	Testing Speed:	2°/ second
Display Method:	Digital height indicator (optional)	Precision:	< 0.25%
Travel Speed:	adjustable from 20 - 80 mm per second
Evidenziare:	Paper Pulp Testing Fiber Classifier , Precision Fiber Classifier , Paper Pulp Testing Instrument

HD-P010 McNett Fibre Classifier (Paul Fiber Sieving Instrument)

Product Attributes

Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Name	Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, paper testing instrument
Display	LCD, Digital display
Feature	Easy to operate
Operation Method	Automatic
Product Type	Testing Instruments
Protection Device	Induction type protection device
Control	PLC control
Sensing Method	Pressure Transmitter
Stop	Stop test
Force Resolution	1/500000 of the maximum test force fs
Vibration Mode	Reciprocating
Test Cycles Setting	4 digits pre-set counter
Load Measuring Range	Full range of 0.2% ~ 100% FS
Accuracy	±0.5%
Horsepower	1/2 HP
Drop Error	± 10
Power Capacity	5.3 HP
Plywood Size	H48in * D48in
Tear Length	43mm
Force Reading	Kgf, Ibf, N, KN, T Etc
Resolution Of Value	0.01N
Pressure Range	600~1200kpa
Testing Speed	2°/ second
Display Method	Digital height indicator (optional)
Precision	< 0.25%
Travel Speed	Adjustable from 20 - 80 mm per second

Product Description

The HD-P010 McNett Fibre Classifier (Paul Fiber Sieving Instrument) is a specialized testing device for pulp and paper laboratories.

Application

The 5-level Ball Sieve (Ball Fiber Sieve) determines the weight average fiber length of pulp fibers by the sieving method. It measures the proportion of fibers of different lengths in the pulp, providing data on the distribution of various fiber lengths.

Principle

Pulp suspension is injected into the sifter, which contains stepped containers with screens. As the suspension flows between containers, fibers are retained on screens according to their length. After sieving at a controlled water flow rate, fibers are collected, dried, and weighed to determine mass percentages relative to the input sample.

Standard Features

Model	T015
Number of Sieve Classification	5 levels
Screener Capacity	10 liters (single classifier volume)
The Speed Of The Stirrer	(580±1) r/min
Screening Mesh	Tyler sieve size 14 mesh, 28 mesh, 48 mesh, 100 mesh (Medium-Long Fiber selected at factory)
The Water Flow	Adjustable 0-20L/min (display accuracy 0.5%R)
Screening Time	9999min (adjustable per experimental standard)
Main Material	304 stainless steel
Net Weight	135Kg
Water Source Status	Continuous water source required
Screen clamping and release method	Pneumatic
Power Supply	240W/380V

Compliance

Complies with GB/T 2678.1-1993 screening test method, TAPPI T233cm-95 screening method, and Nordic SCAN M6 experimental method (10g sample, 15min water flow at 10L/min).
