5099-HD Oxygen Transmission Rate Tester
Product Overview
This advanced oxygen transmission rate tester utilizes coulometric oxygen analysis sensors and isobaric test principles to provide high-efficiency oxygen permeability testing for materials with varying gas barrier properties. The system offers precise temperature, humidity, and flow rate control with exceptional test sensitivity and repeatability.
Key Attributes
| Function |
Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument |
| Display |
LCD, Digital display with unit switching (Kgf, N, Lbf) |
| Control System |
PLC (Programmable Logic Controller) |
| Movement Drive |
Ball screw and servo motor |
| Vibration Mode |
Reciprocating |
| Design Standards |
EN71, ANSI, UL, ASTM, ISTA |
| Test Methods |
Electronic, mechanical, manual |
| Transmission Mode |
Pneumatic device + reducer + release |
Technical Features
- Three independent test chambers for simultaneous testing of different samples
- Imported high-precision sensors ensure exceptional test accuracy
- Advanced water bath temperature control system with wide temperature range
- Independent control of upper/lower chambers and sensors for result accuracy
- Sealed pipeline system reduces system errors for more precise results
- Anti-leakage sample structure design for stable sealing
- Multiple test modes (manual, proportional, cyclic) for various scenarios
- Expandable USB interfaces and network ports for data access
- Self-detection capabilities ensure continuous operational status
- Power-off automatic save function prevents data loss
Technical Specifications
| Measuring Range |
Film: 0.01-200cm³/m²*24h (conventional)
Container: 0.00025-1 cm³/pkg*24h (optional) |
| Resolution |
0.001 cm³/m²•24h |
| Temperature Control |
5°C to 85°C (±0.1°C accuracy) |
| Humidity Control |
0% RH, 5%-90%RH, 100%RH (±1%RH accuracy) |
| Sample Capacity |
1-3 pieces (independent data) |
| Transmission Area |
50 cm² |
| Max Sample Thickness |
≤3mm |
| Carrier Gas |
99.999% high purity nitrogen (user-provided) |
| Dimensions |
740mm (L) × 415mm (W) × 430mm (H) |
| Weight |
50Kg |
| Power Supply |
AC 220V 50Hz |
Compliance Standards
GB/T 19789, ISO 15105-2, ASTM D3985, ASTM F2622, ASTM F1927, JIS K7126-2, YBB 00082003
Applications
Ideal for oxygen permeability testing of films, sheets, paper, and packaging materials in food, pharmaceuticals, medical devices, cosmetics, photovoltaic electronics, and related industries.

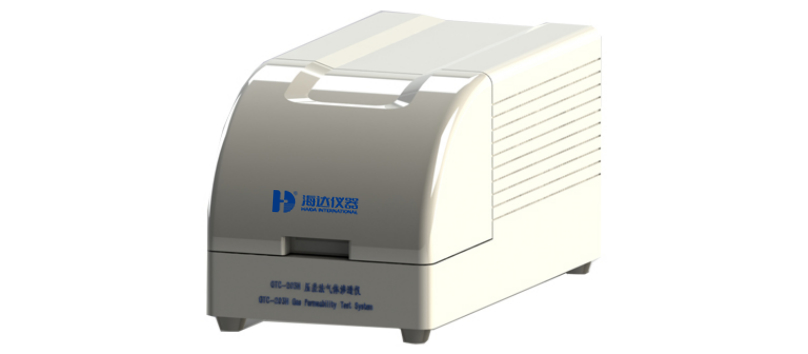

Product Images
About Haida
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
