8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing

Grande immagine : 8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing

Dettagli:

Luogo di origine:	Cina
Marca:	Haida
Certificazione:	CE,,ISO
Numero di modello:	8040-HD

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Prezzo:	Negoziabile
Imballaggi particolari:	Ogni set protetto con fibra di resina e film PP, quindi messo in una forte custodia in legno con Ope
Tempi di consegna:	20 giorni dopo l'ordine confermato
Termini di pagamento:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Capacità di alimentazione:	300 set al mese

Contatto

8040-HD Medical Needle Tester with 0.1～4.0mm Needle Tube, 1.0～100N Set Load, and 7-inch Touch Screen for Syringe Puncture Force Testing

descrizione

Parete della metropolitana:	Parete normale, parete sottile, parete ultra-sottile	Specifica del tubo dell'ago:	0.1 ¥4.0 mm
Carico impostato:	1.0·100N Precisione: ±0,01N	Velocità di carico:	1 mm/min ((0,1~200 mm/min regolabile)
Intervallo di estensione:	5×50 mm Precisione: ±0,01 mm	Prova di deformazione:	0°10 mm Precisione: ±0,001 mm
Dimensione (LPA):	460380450mm	Controllore:	Tipo di controller LCD
Energia:	CA 220 V/50 Hz	Peso:	28 kg
Evidenziare:	0.1～4.0mm Needle Tube Medical Needle Tester , 1.0～100N Set Load Syringe Puncture Force Tester , 7-inch Touch Screen Medical Device Tester

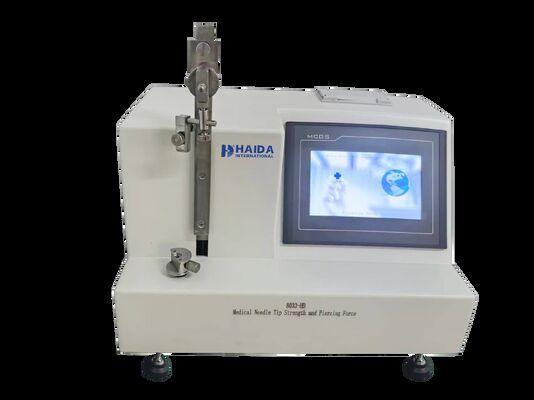

8040-HD Medical Needle Tip Strength and Piercing Force Tester

The 8040-HD Medical Needle Tip Strength and Piercing Force Tester is designed to evaluate the puncture force performance of syringe tips, determining whether the sharpness meets standard requirements. This instrument is also known as a Syringe Puncture Force Tester.

Product Features

Tests puncture force performance of syringe tips
Evaluates needle sharpness against standard requirements
Professional medical testing equipment

Technical Parameters

Feature	Description

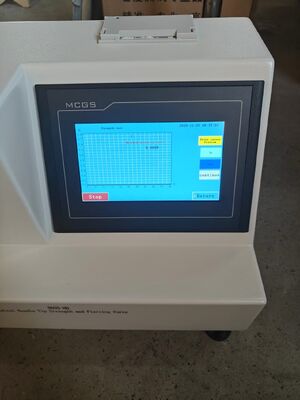

Display	7-inch K600+ core/dot matrix 65-color, 800*480 resolution touch screen with dynamic loading force value display via PLC control system
User Interface	Selectable: Chinese / English / Chinese-English switchable
Control & Data Acquisition	Digital closed-loop control, AD sampling speed of 500KHz, internal resolution of 500,000
Data & Protection	High-precision clock chip, power-off storage; Overload alarm and automatic shutdown protection
Touch Controls	Nominal specification, Test item, Applied load, Print, Test, Up, Down, Time, Calibration
Printing	Built-in printer outputs test results

About Haida International Equipment Co., Ltd

Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida International Equipment Co., Ltd specializes in the production and R&D of various material physical properties testing equipment. We maintain our own independent research and development center and operate four testing equipment production lines: textile, footwear, leather, and mask. In 2006, our textile, footwear, leather, and mask testing equipment officially entered production and began serving the international market.

Why Choose Haida?

Design & Production

Solution consultation for each order
Recommendation of the most cost-performance machines
Research and development of specialized models for specific requirements

Shipping & Delivery

One-stop service from production to delivery
Complete delivery to your door including installation and training
Comprehensive technical support

Warranty

1-year warranty with lifetime technology support

After-Sale Service

Response within 2 hours
Combined video inspection and on-site service

Frequently Asked Questions

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we offer technical support and replacement parts. If necessary, our engineers may provide on-site service at your location.

Q: What is the order process?

A: Inquiry → Quotation → Requirement confirmation → Order confirmation → Payment → Production → Testing and debugging → Packing → Document confirmation → Delivery arrangement → Product shipment → Customer receipt → After-sales service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory. We will help arrange hotel accommodations and provide airport pickup service.

Q: Do you accept customization service?

A: Yes, we offer both standard machines and customized equipment according to your specific requirements. Please share your needs with us, and we will do our best to meet them.
